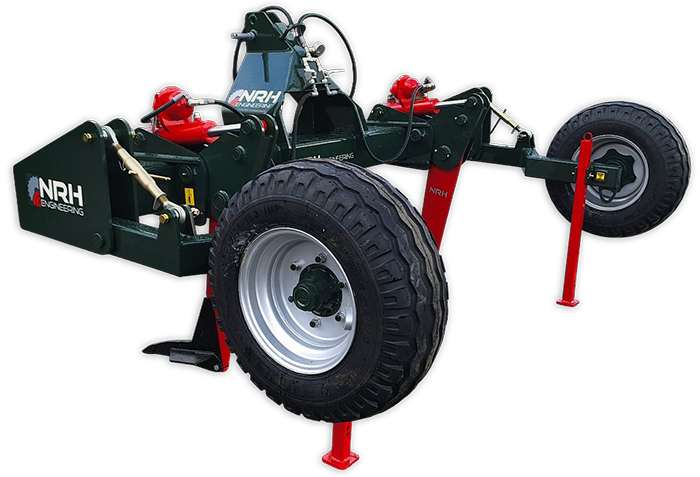

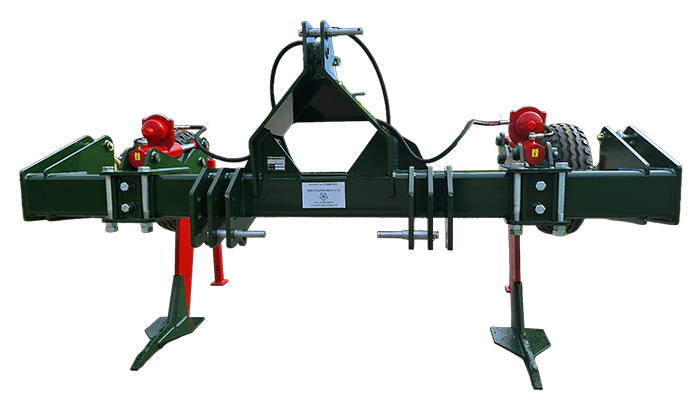

Heavy-Duty Restoration
Our heavy-duty twin-leg design delivers focused power directly into the wheel tracks, effectively restoring soil structure where it is needed most without the draft requirements of a full-width machine. Invest in a machine crafted for long-lasting durability and minimal maintenance, ensuring your investment stands the test of time.
Targeted Restoration
Effectively fractures deep compaction in the tractor’s path to restore drainage and root health.
XAR500 Carbon Steel
High-grade legs built for extreme durability in the most abrasive and heavily trafficked conditions.
12mm Frame Wall
A massive 300x200x12 box section frame—our most robust construction for handling high-HP stress.
Engineering & Durability Commitment
The Tramline Buster is built for maximum durability and minimal maintenance. Its main frame utilises S355 high-tensile box section (300mm x 200mm x 12mm), precision MIG welded to create a rock-solid platform. All wearing parts are designed for longevity, with the high-grade XAR500 legs providing superior strength-to-weight performance compared to traditional steels.
Performance & Versatile Protection
Efficiency is driven by the choice of leg protection: either a simple, tool-free Shear Bolt system or the premium Hydraulic Auto-Reset, which eliminates downtime and allows for greater forward speeds in challenging terrain. The machine is designed for seamless integration into your system, fitting CAT 2 or 3 linkages and maintaining a practical 2.6m transport width.
SPECIFICATIONS
Uncompromising Frame Strength
The main frame is engineered for ultimate durability, featuring a 12mm wall thickness—surpassing even the Quake’s standard frame. This robust construction ensures the machine can handle the intense stress loads of deep-working tramline restoration, securing its place as a long-term investment for modern estates.
Targeted Soil Fracturing
The two-leg configuration is optimised for deep-working efficiency (up to 610mm working depth).
• Leg Material: High-grade XAR500 carbon steel for maximum service life.
• Adjustable Spacing: Leg centres can be adjusted up to 2300mm to perfectly align with the wheel marks of modern high-horsepower tractors.
• Quick-Fit Points: Compatible with 4” or 6” subsoiler feet, featuring integrated side plates to protect the leg from excessive wear.
Non-Stop Productivity
Leg protection is available in two configurations:
• Shear Bolt: A reliable, cost-effective system for consistent conditions.
• Hydraulic Auto-Reset: The premium choice for stony ground, allowing the legs to trip and reset automatically, ensuring the operator never has to leave the cab to replace a bolt.
Consolidated & Weatherproof Finish
The Tramline Buster offers versatile finishing options to suit your soil management strategy:
• 610mm (24”) Packer Roller: Provides heavy-duty consolidation to seal the surface and prevent moisture loss.
• 580mm (23”) Solid Coil: A targeted alternative for aerating while firming the soil.
• Hydraulic Adjustment: Both the packer and coil options feature hydraulic depth adjustment as standard, giving the operator ultimate control over the finish directly from the tractor.
SPEC TABLE
